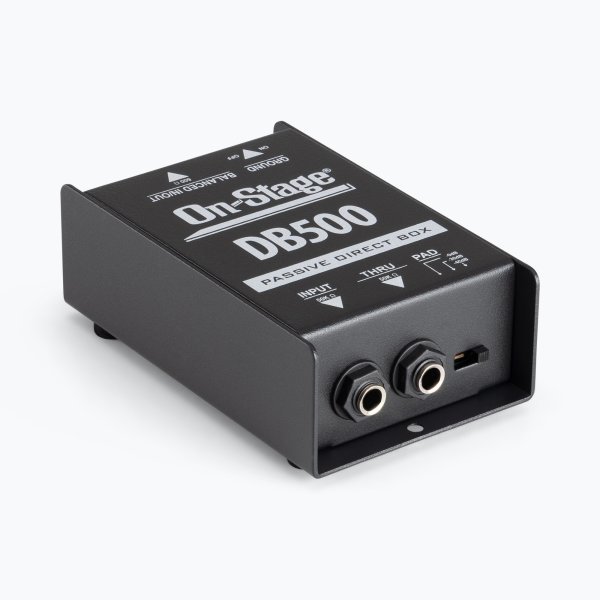

On Stage DB500 Passive DI Box

available at

available at

See All Locations

Low in-store inventory, may be subject to change.

Product Properties

Application
Acoustic guitars, bass guitars, keyboards, and more

Construction
Metal

Dimensions
(W)4.75" x (H)1.375" x (D)2.875"

Input Impedence
350K Ohms

Inputs
1/4"

Output
XLR

Output Impedence
80 Ohms

Pad
20dB, 40dB, Ground Lift: Yes

Power
Passive/not required

Product Type
Direct Box

Weight
0.5 lb

Description:

Our DB500 Passive DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -20 dB or -40 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, and a throughput connector to pass unaltered signal to a stage amp. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
